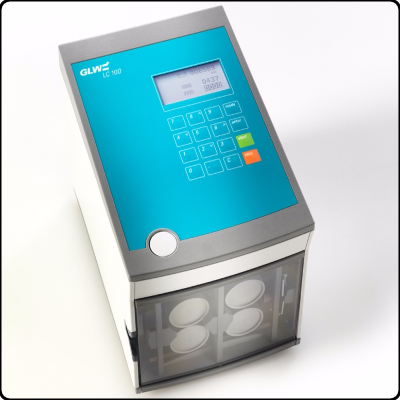

Cross Cutting Machine LC100SL
Cut tubes to length quickly and precisely
Precise, straight cut
Easy and safe to handle
Light weight allows easy transportation
Simple and quick input due to clear graphic display and control panel
Enhanced measurement accuracy due to independent measuring system.

Description

When cutting tubes to length, an exact cut, along with the length, plays a decisive role. Thanks to the appropriate tube guide and the special blade, the Cross Cutting Machine LC100SL provides you with a precise, straight cut.

The separation of the drive and measuring rollers provides a high level of measurement precision.

The processing is imaginably simple. The front flap opens with the touch of button and the material is inserted. When the flap is closed, the measurement and transport rollers automatically adjust to the diameter. The clearly designed control panel with display simplifies the quick input of the length and number of pieces. Press the start button and production begins.

Technical data Cross Cutting Machine LC100SL
Max. tube outer diameter: 8 mm (0,32“)
Gauge length: 2 mm – 1000 m
Feed speed: 0.04 – 0.5 m / sec
Power supply: 100 – 240 VAC / 50-60 Hz
Power consumption: 150 VA
Dimensions (L x W x H) 301 x 194 x 228 mm (11.9 x 7.7 x 9.0“)
Weight: 10 kg / 22 Ibs.
