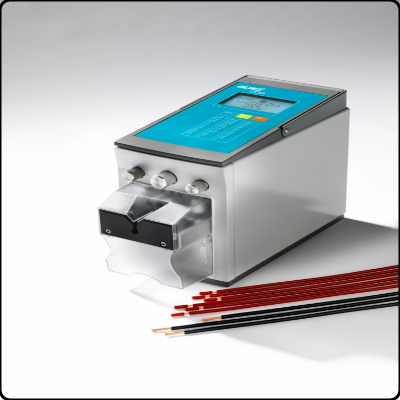

GLW Wire Stripper CS60
Quick, easy and highly efficient.
Quickly adjust length and cross-section.
Carrying handle allows for portable use.
Large graphic display simplifies adjustment.
The automatic clamping forcing adjustment protects sensitive insulations.

Description

The GLW Wire Stripper CS60 can be easily adjusted with the large, user-friendly buttons. The large graphic display visualises the data entered.

In just a few seconds, the cross-section and stripping adjustments are completed, which implies that the GLW Wire Stripper CS60 is also well suited for small series.

In addition, the partial stripping function allows cable to be prepared in larger numbers. The cable insulation is not completely stripped and this prevents the strands from fanning out.
Technical data GLW Wire Stripper CS60
Working cross-section 0.08 – 6 mm² / AWG 28 – 10
Max. cable diameter 6 mm
Stripping length 2 – 20 mm
Partial stripping length 2 – 20 mm
Feed-in length + stripping length 15 mm + X
Cycle time (full strip) 0.3 sec
Stripping blade V shape
Power supply 230V / 50Hz (115V / 60 Hz)
Dimensions (L x W x H): 363 x 141 x 221 mm
Weight: 9.5 kg / 21 lbs
