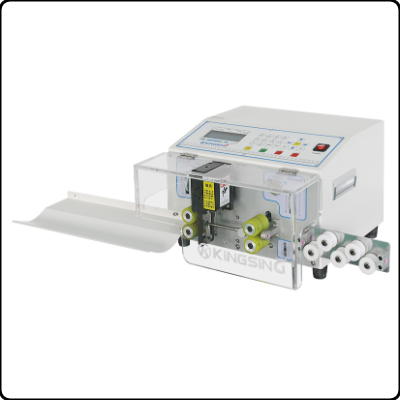

This new Cut & Strip Machine can process wire in the range of 11-30AWG (0.1-4.0mm²) with stripping lengths up to 35mm on both ends of the wire. This Cut & Strip Machine is easy to program via menu driven software and an LCD display and is fast to set up with no change of tooling required other than the guide tube. Up to 99 different cutting & stripping programs can be stored making this machine suitable for a very wide range of applications.

Category:

Description

This cut and strip machine is easy to program via menu driven software and LCD display and is fast to setup with no change of tooling required other than the guide tube. Up to 99 different cutting and stripping programs can be stored making this machine suitable for a very wide range of applications. It offers a high level of accuracy and is fast, able to cut and strip up to 8000 pcs/hour. This machine also features a middle strip capability.

Cut and Strip Machine Specifications.

Available Wire Size: 0.1 ~ 4.0mm2(AWG30 ~ AWG11)
Max. Conduit Diameter: Φ7.0mm
Cutting Length: 0.1 ~ 100000mm
Stripping Length: Head 0~35mm, End 0~35mm
Max. Middle Stripping Section: 15 places
Memory Function: Max. 100 group of programs
Stripping Accuracy:± (0.002mm× Stripping Length)
Cutting Accuracy:± (0.002mm× Cutting Length)
Speed: 5000~8000pcs/hour
Drive Mode: 4-wheel drive
Display: LCD display with English menu
Blade Material: Hard tungsten steel
Power Rating: 430W
Power Supply: 220V/50Hz 110V/60Hz
Net Weight: 26Kg
Dimension: 400 x 410 x280mm
