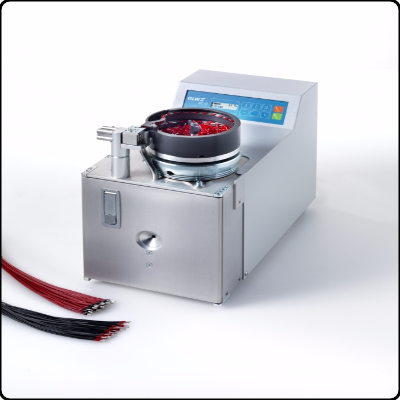

Wire Stripper Crimper MC40L
Efficient processing of wire end sleeves of 4, 6 and 10 mm²
Wire Stripper Crimper MC40L Features:
High level of reliability
Stripping and crimping in one work step
Quick change of cross-sections with few hand movements
Components are maintenance and wear-free

Description

The Wire Stripper Crimper MC40L processes loose wire end sleeves with plastic collars (cross-section 4, 6 and 10 mm²).

It features a high level of reliability and flexibility.

The use of premium components in combination with a robust construction ensures reliable operation.

Cross-sections can be changed with simple hand movements. One tool set is available for each cross-section. With the appropriate conveyor bowl is put in place, the cross-section-specific receptacle is snapped in.

For smaller cross sections ( 0.25 – 2.5 mm² / AWG 24 – 14 ) we suggest the Stripper and Crimper MC 40-1 .
Technical data Wire Stripper Crimper MC40L
Cross-section 4 / 6 / 10 mm²
Cycle time 1.5 s
Crimp length 12 mm
Power supply 110 – 240 V / 50 – 60 Hz
Compressed air connection 6 bar
Dimensions (L x W x H) 550 x 250 x 412 mm (21.7 x 9.8 x 16.2 “)
Weight 27 kg / 60 lbs

See it in action
