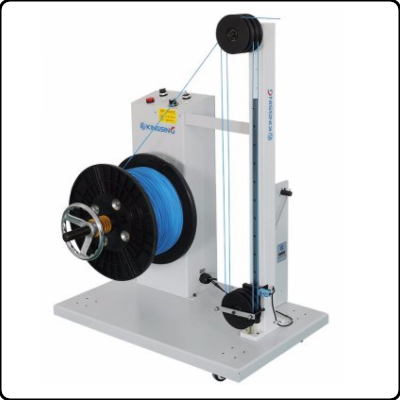

Motorized Wire Prefeeding Machine

The KS-W221 Motorized Wire Prefeeding machine is specifically designed for cable drums weighing up to 70kgs. The wire de-reeler is characterized by utilizing the frequency control technology to guarantee a smooth and consistent wire feeding performance.

Description

The KS-W221 Motorized Wire Prefeeding machine is specifically designed for cable drums weighing up to 70kgs. The wire de-reeler is characterized by utilizing the frequency control technology to guarantee a smooth and consistent wire feeding performance. The motorized brake control method allows accurate feed effect. The KS-W221 has an adjustable speed control system which automatically controls accurate and effective wire feeding to wire processing machinery.

Motorized Wire Prefeeding Machine Specs

Wire Size 0.5 – 10mm O.D.
Wire Spool Diameter Max 600mm
Wire Spool Width Max 300mm
Wire Spool Weight Max 70Kgs
Power Supply 220V, 50/60Hz
Net Weight 68Kgs
Dimensions 800 x 650 x 1140mm
