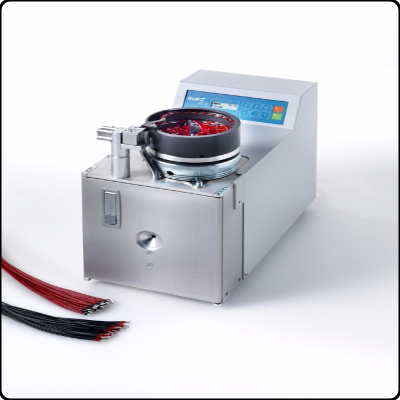

Wire Stripper Crimper MC40-1
Automatic processing of wire end sleeves 6-12 mm length.
Stripping and crimping in one work step.
No special tooling for length adjustment required.
Quick change of cross-sections with just a few hand movements.
High level of reliability due to maintenance and wear-free components.


The Wire Stripper Crimper MC40-1 provides efficient processing of loose wire end sleeves with plastic collars in different lengths. This version requires no special tooling length adjustment. It is simply done by a thumb wheel. The machine features a high level of reliability and flexibility. The use of premium components in combination with a robust construction ensures reliable operation.

Cross-sections can be changed quickly with just a few hand movements. After the wire end sleeves have been changed in the conveyor bowl, only the cross-section-specific receptacle still just needs to be snapped in and then production can continue.

For cross sections 4 – 10 mm² (AWG 12 – 8) we suggest the Stripper and Crimper MC 40L .

Technical data Wire Stripper Crimper MC40-1
Cross-section 0.5 – 1.5 mm²
Cycle time 1.0 s
Crimp length 6-12 mm
Power supply 110 – 240 V / 50 – 60 Hz
Compressed air connection 5 bar
Dimensions (L x W x H) 550 x 250 x 412 mm (21.7x 9.8x 16.2″)
Weight 27 kg / 60 lbs Send request
