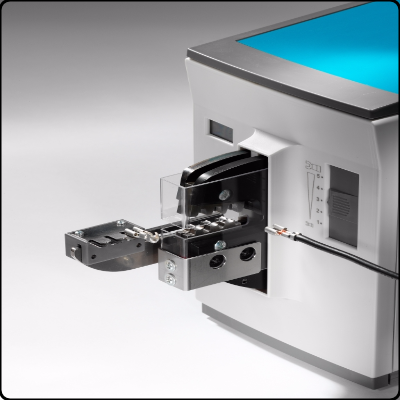

GLW Electric Crimper EC65
Easy to operate with high flexibility.
No compressed air necessary.
Crimping die easy to change.
Carry handle enables different work stations.
Lower energy costs compared to compressed air machines.
Flexible use thanks to a wide range of crimping dies.
Positioning aids simplify crimping of contacts.

Description

The GLW Electric Crimper EC65 allows crimping a wide variety of different contacts.

The crimping process is actuated by foot switch which means both hands are free to insert the contact into the crimping die.

The contact can be retained before crimping process starts just by selecting the additional two-step operating mode. This simplifies the processing of complex crimp contacts and avoids faulty crimps.

Also the width of the opening of the die is adjustable in 5 steps which means the die can be easily changed with just a few hand movements. For individual requirements, we can manufacture crimping dies to customer’s specifications.

Technical data GLW Electric Crimper EC65
Max. press capacity 10 kN
Cycle time 1 s
Power supply 230V / 50Hz (115V / 60Hz)
Power consumption 160 VA
Dimensions (L x W x H) 320 x 140 x 220 mm
Weight 10 kg / 22 lbs

See it in action
