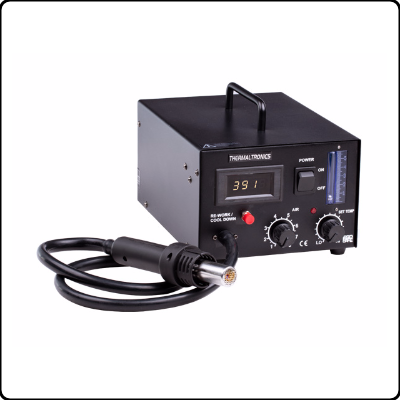

TMT-HA300 Hot Air Unit

The TMT-HA300 hot air unit uses a large diaphragm pump and can be used for surface mount component removal and reflow on components such as SOIC, CHIP, QFP, PLCC and others.

TMT-HA300 Hot Air Unit Features
*Digital display shows temperature and status.
*Airflow meter provides visual feedback of air flow.
*Large selection of high quality nozzles.
*Adjustable, easy to use temperature and air control knobs.

TMT-HA300_User_Manual

Description

The TMT-HA300 hot air unit uses a large diaphragm pump and can be used for surface mount component removal and reflow on components such as SOIC, CHIP, QFP, PLCC and others.

The TMT-HA300 Hot Air Unit features.
*Digital display shows temperature and status.
*Airflow meter provides visual feedback of air flow.
*Large selection of high quality nozzles.
*Adjustable, easy to use temperature and air control knobs.

Specifications
Input Line Voltage: 220-240 VAC
Power: 500 Watts
Temperature Range: 100°C – 480°C
Pump: Diaphragm
Airflow (Max) 23L / min
Fuse: 250V 3A
Size (W x H x D): 188mm x 127mm x 246mm
Weight: 4.0 KG
