Call for Price

The Station comes with the Adjustable Micro Tweezers AM120. This is the fastest way to remove SMD chip components and small/medium SOP from PCB assemblies. The Tweezers are suitable for C120 Cartridges. The Station works with the JBC exclusive Heating System and the intelligent Sleep & Hibernation features. Using the menu you can personalize over 20 parametes. It features a USB connector to update software, create graphs and manage parameters from a PC. A complete Cleaning System with antisplash membrane and wiper with sponge is integrated.

CP Micro Tweezers Data Sheet

Compare

Description

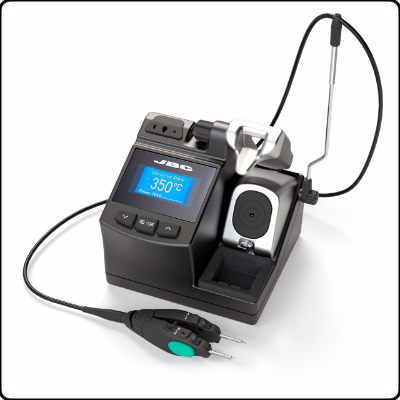

CP-2E Micro Tweezers Station comes with the Adjustable Micro Tweezers AM120.

This is the fastest way to remove SMD chip components and small/medium SOP from PCB assemblies.

The Tweezers are suitable for C120 Cartridges.

The Station works with the JBC exclusive Heating System and the intelligent Sleep & Hibernation features.

Using the menu you can personalize over 20 parameters.

It features a USB connector to update software, create graphs and manage parameters from a PC. A complete Cleaning System with anti-splash membrane and wiper with sponge is integrated.
CP-2E Micro Tweezers Station SELECTABLE PARAMETERS
Temperature – 90 to 450 ºC / 190 to 840 ºF
SPECIAL FEATURES
Sleep and Hibernation mode. These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max. and min. temperature: Limit the temperature range in which the operator is allowed to work.
Temperature levels. Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
PIN protection. Keep station parameters protected against unauthorized access.
CONNECTIVITY: USB-B Software PC / Firmware update
ESD safe
Tip to ground resistance <2 ohms
Tip to ground voltage <2 mV RMS
POWER SUPPLY
Peak power
80 W – 23,5 V
Voltage (AC) Ref. CP-2E – 230 V
Ambient operating temp. 10 to 40 ºC / 50 to 104 ºF
