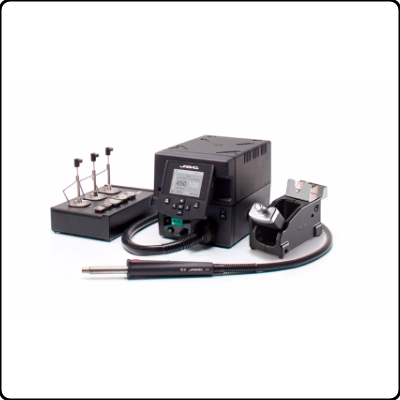

Precision Hot Air Station TESE-2A is for repairing small and medium SMDs quickly and safely.
It features along with the manual mode a powerful functionality of profiles to perform rework tasks with the maximum precision.You can control temperature values and air flow rate by creating up to 25 profiles.
You can read the temperature at a specific point on the PCB with the control thermocouple PH218. It helps protect the components or a specific area on the PCB.
The auto-stop function is a safety measure which ensures the heat is automatically cut off when the tool is in the TE-SE stand.
Temperature: 150 to 450 ºC (300-840 ºF)
Air flow: 2 to 17 SLPM
Temperature profiles: Design specific thermal profiles for automatic SMD soldering. Obtain repeatable results and avoid thermal shock by controlling the temperature throughout the different phases of the process (ramp up rate, peak temperature and ramp down rate). Up to 25 fully configurable soldering profiles can be stored.
Operating modes: Heating / Cooling
Type K thermocouple: Plug an external TC to the controller and place it close to the component to be soldered or reworked to have the most precise temperature control regardless of the distance to the nozzle. It can be used both for Control and Protection purposes.
Vacuum: 30% / 228 mmHg / 9 inHg
CONNECTIVITY: USB-B (rear)Software PC / USB-A (front) Firmware update, Graphics/Profiles management.
RS-232 remote control
Optional tool control
ESD/EOS ESD safe
POWER SUPPLY Peak power 300 W
Voltage (AC) ref. TESE-2A – 230 V
Ambient operating temp. 10 to 40 ºC / 50 to 104 ºF
