Call for Price

This Station is suitable for precision soldering with a T210 Handle, the ideal tool when working on populated PCBs or under a microscope, and works with C210 Cartridges.  It comes with the JBC exclusive Heating System and the intelligent Sleep & Hibernation features. Using the menu you can personalize over 20 parameters.  It features a USB connector to update and manage parameters from a PC. There is an integrated complete Cleaning System with antisplash membrane and wiper with sponge.  You can also connect the T245 Iron with any C245 Cartridge.

JBC Compact Line Data Sheet

Compare

Description

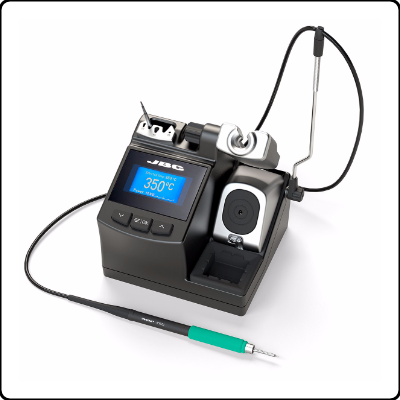

The CD-2SE Precision Soldering Station and T210 Handle is the ideal tool when working on populated PCBs or under a microscope, and works with C210 Cartridges.

It comes with the JBC exclusive Heating System and the intelligent Sleep & Hibernation features. Using the menu you can personalize over 20 parameters.

It features a USB connector to update and manage parameters from a PC. There is an integrated complete Cleaning System with antisplash membrane and wiper with sponge.

You can also connect the T245 Iron with any C245 Cartridge.

SELECTABLE PARAMETERS
Temperature
90 to 450 ºC / 190 to 840 ºF
SPECIAL FEATURES
Sleep and Hibernation mode. These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max. and min. temperature: Limit the temperature range in which the operator is allowed to work.
Temperatue levels: Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
PIN protection: Keep station parameters protected against unauthorized access.
CONNECTIVITY: USB-B
Software PC / Firmware update
Equipotential bonding
ESD/EOS: ESD safe Tip to ground resistance <2 ohms: Tip to ground voltage: <2 mV RMS
POWER SUPPLY: Peak power: 40 W – 23,5 V
Voltage (AC): Ref. CD-2SE – 230 V
Ambient operating temp: 10 to 40 ºC / 50 to 104 ºF
DIMENSIONS AND WEIGHT: Control Unit: 150 x 175 x 145 mm / 2.67 kg
