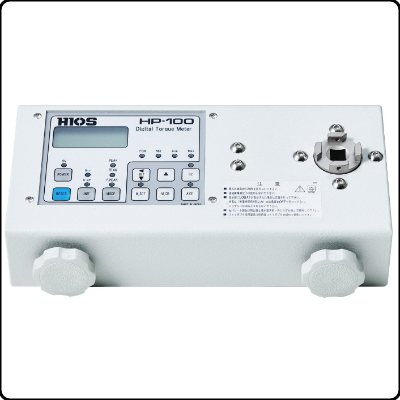

HIOS Digital Torque Meter

HIOS Digital Torque Meter for adjusting torque settings on electric screwdrivers, checking torque wrenches or measuring torque of various rotating units.

Description

HIOS Digital Torque Meter for adjusting torque settings on electric screwdrivers, checking torque of torque wrenches or measuring torque of various rotating units, etc.

● Measured data can be imported to a computer.
● Up to 100 data items can be stored in the memory and controlled (applicable to HP and HDP only).
● With one unit of Torque Meter, max, min and ave torque values can be measured (applicable to HP and HDP only).
● New product, HP-1 is ideal for measuring 10N・cm or smaller torque.
● Torque for both clockwise or counterclockwise can be measured.
● As a standard specificataon, data output and analogue output are available.
● We offer calibration and maintenance services.
● “Inspection Report” is attached to all the Torque Meters.

HIOS Digital Torque Meter Specifiactions
Peak mesuring range
N・m                                                                               0.15-10
kgf・cm                                                                           1.5-100
lbf・in                                                                              1.5-90
Accuracy                                                                         Within ±0.5% (F.S.)
Measuring models                                                           TRACK, PEAK, FIRST PEAK
External Dimensions(mm)                                               230 ×124 ×65.2 (H)
Weight(g)                                                                         1.8kg
Charging time                                                                  1.2V NiMH x 5 cells 1,000mA (within 6 hours)
Continuous operating time on a full charge                     8 hours
Battery life                                                                        About 300 charges
Exclusive battery charger Input:                                    AC 100-240V (50 / 60Hz)

Output:                                                                           DC 7.3-8V 0.5 A
