Autofocus 5MP Digital Microscope

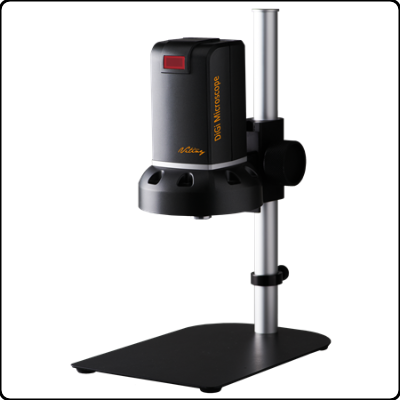

The ViTiny UM06 tabletop digital microscope is a total auto-focus digital microscope camera with exchangeable lenses, 5MP high definition, HDMI and USB connection. The UM06 is easy to set up and operate, suitable for applications in laboratories and classrooms. UM06 can be plugged into a computer with USB cable, or a high resolution monitor with HDMI cable (1080P high quality).

Category: Tags: , , ,

Description

Autofocus 5MP Digital Microscope – The included ViTiny software allows users to view a live image, capture images and videos, measure and edit. Users can controls focus, zoom, white balance, exposure value and luminance through the IR remote control. The lens are exchangeable. Within the focal range, one can choose suitable image parameters and ensure the best image quality.

Autofocus 5MP Digital Microscope Specifications

Working distance ：14cm ~3.5cm
Magnification: 20x ~ 150x on 22” monitor
CMOS Sensor ：5 M pixel resolution
Dimension: φ 106 * 141.6 mm\
Built-in 30 top view LED lights with adjustable brightness
USB 2.0 Transmission

Mode# 1: USB Connection to a PC (Windows, Mac iOS or Linux)
    Autofocus control from the software, save captured image in JPEG or BMP format
    2D measurement, compare inspection images by optional JPGE or BMP import
    Device compatibility: Windows , Mac OS X.4.8+ and Linux with UVC driver
 Mode# 2 : HDMI Connection to a monitor
    IR remote control and focus system
HDMI output with HD 1080p images
Response time: 30 time frame
Built-in external light socket
Power source: DC12V/1A input with 180 cm cable length
